类型：伞型系列，替换式
Type: Bull nose centers,Interchangeable
适 用：CNC车床及其他机床。
Application: CNC lathe and other machine tool.
用 途：适用大孔径车削，配合尾座回转型结构设计使用。
Working Usage: Applicable for big size inner diameter workpiece turning process.
检测顶尖的尖部跳动精度时，必须在顶尖顶紧工件的状态下进行打表。
Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.

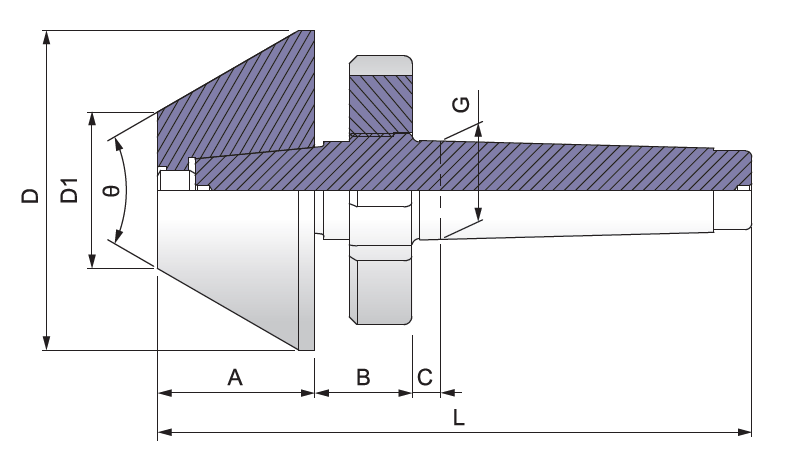

规格 / Specification 单位/ UNIT：mm 精准度 TIR：<0.005mm
|
型式/外表尺寸 Model/Spec |
A | B | C | D | D1 | G | L | Ø |
|---|---|---|---|---|---|---|---|---|
| TSC-96880-3"-3A | 50 | 31 | 8 | 76.2 | 24.2 | 23.825(MT3) | 168 | 60゜ |
| TSC-96880-4"-3A | 50 | 31 | 8 | 101.6 | 49.6 | 23.825(MT3) | 168 | 60゜ |
| TSC-96880-5"-3A | 50 | 31 | 8 | 127 | 75 | 23.825(MT3) | 168 | 60゜ |
| TSC-96880-6"-3A | 50 | 31 | 8 | 152.4 | 100.4 | 23.825(MT3) | 168 | 60゜ |
| TSC-96880-3"-4A | 50 | 31 | 9 | 76.2 | 24.2 | 31.267(MT4) | 189 | 60゜ |
| TSC-96880-4"-4A | 50 | 31 | 9 | 101.6 | 49.6 | 31.267(MT4) | 189 | 60゜ |
| TSC-96880-5"-4A | 50 | 31 | 9 | 127 | 75 | 31.267(MT4) | 189 | 60゜ |
| TSC-96880-6"-4A | 50 | 31 | 9 | 152.4 | 100.4 | 31.267(MT4) | 189 | 60゜ |
