检测顶尖的尖部跳动精度时，必须在顶尖顶紧工件的状态下进行打表。
Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.
|
型式/规格 Model/Spec |
莫氏锥柄 MT |
轴承最高转数 Max. RPM |
轴承径向力（载重） Max. radial load |
轴承轴向力（推力） Max. axial thrust force |

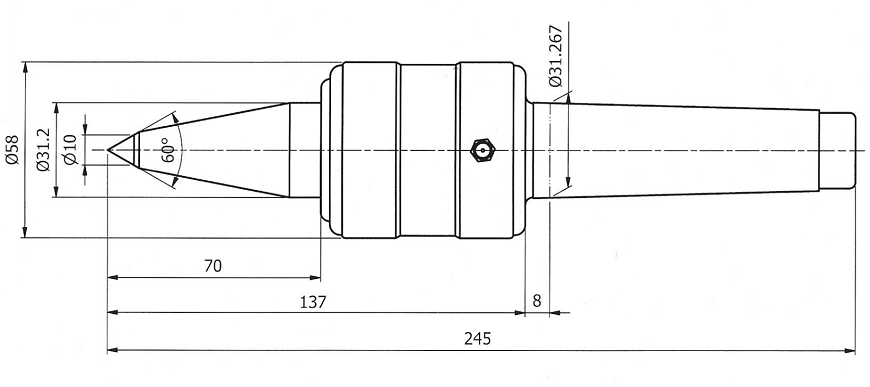

| TSC-9063-TS10-4 | 31.267（MT4) | 3500 | 1000 | 1500 |
配件详情页/Accessories Page
顶尖技术要点与使用说明/Center technical user manual
保留技术更改的权利,恕不另行通知 Subject to technology changes without prior information
非标需求可定做 Non-standard requirements can be made
