品牌：OMATEI
选型指导：
1，所用卡盘的品牌及型号
2，工件尺寸及需要夹持的高度
产品优势：
1，标准软爪材质为优质45#钢，强度好，可硬化。
2，精密齿距紧密贴合卡盘基爪，降低磨损。
3，可用于NTH及所有其他品牌相关型号的卡盘。
4，客制化非标卡爪可设计、定做、OEM代工。
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

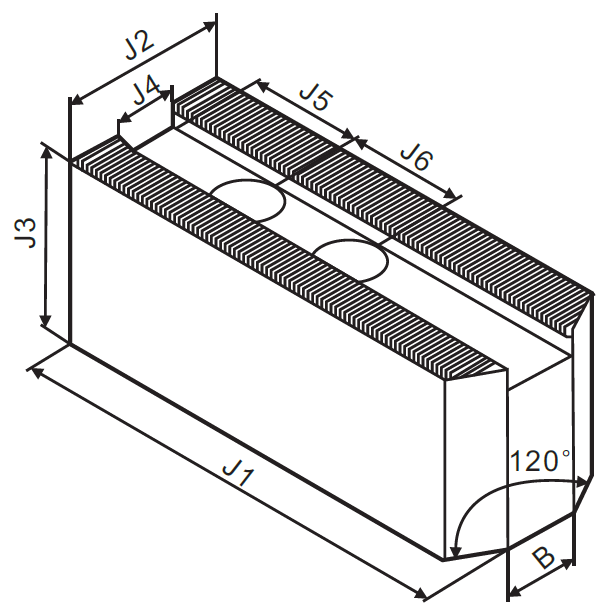

齿距：1.5mm×60° Serration Pitch:1.5×60° 单位/UNIT:mm
|
型号 Model |
J1 |
J2 |
J3 |
J4 |
J5 |
J6 |
B |
螺孔 Screw |
重量 Weight Kg/set |
|---|---|---|---|---|---|---|---|---|---|
|
SC08H50 |
95 |
35 |
50 |
14 |
24 |
25 |
16 |
M12 |
3.2 |
|
SC08H60 |
95 |
35 |
60 |
14 |
24 |
25 |
16 |
M12 |
3.8 |
|
SC08H70 |
95 |
35 |
70 |
14 |
24 |
25 |
16 |
M12 |
4.4 |
|
SC08H80 |
95 |
35 |
80 |
14 |
24 |
25 |
16 |
M12 |
5.1 |
|
SC08H90 |
95 |
35 |
90 |
14 |
24 |
25 |
16 |
M12 |
5.8 |
|
SC08H100 |
95 |
35 |
100 |
14 |
24 |
25 |
16 |
M12 |
6.4 |
|
SC08H110 |
95 |
35 |
110 |
14 |
24 |
25 |
16 |
M12 |
7.0 |
|
SC08H120 |
95 |
35 |
120 |
14 |
24 |
25 |
16 |
M12 |
7.6 |
|
SC08H130 |
95 |
35 |
130 |
14 |
24 |
25 |
16 |
M12 |
8.2 |
|
SC08H140 |
95 |
35 |
140 |
14 |
24 |
25 |
16 |
M12 |
8.8 |
|
SC08H150 |
95 |
35 |
150 |
14 |
24 |
25 |
16 |
M12 |
9.4 |
|
SC08H160 |
95 |
35 |
160 |
14 |
24 |
25 |
16 |
M12 |
10.1 |
|
SC08H170 |
95 |
35 |
170 |
14 |
24 |
25 |
16 |
M12 |
11.7 |
|
SC08H180 |
95 |
35 |
180 |
14 |
24 |
25 |
16 |
M12 |
11.4 |
|
SC08H190 |
95 |
35 |
190 |
14 |
24 |
25 |
16 |
M12 |
12 |
|
SC08H200 |
95 |
35 |
200 |
14 |
24 |
25 |
16 |
M12 |
12.6 |
