Vise for 5-side machining
|
型号
MODEL
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
重量/N.W.
|
|
TMV-75
|
80
|
70
|
30
|
5
|
15
|
15
|
120
|
50
|
80
|
75
|
8
|
|
TMV-100
|
105
|
95
|
40
|
5
|
20
|
25
|
160
|
70
|
115
|
100
|
15
|
|
TMV-130
|
135
|
125
|
50
|
5
|
20
|
25
|
210
|
80
|
125
|
130
|
34
|
|
TMV-160
|
165
|
155
|
60
|
5
|
25
|
25
|
250
|
90
|
140
|
160
|
49
|

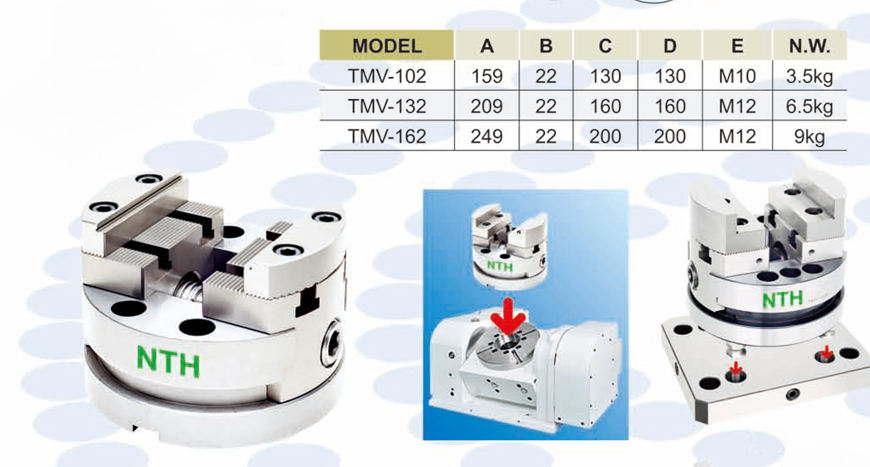

Adapting plate
|
型号
MODEL
|
A
|
B
|
C
|
D
|
E
|
重量/N.W.
|
|
TMV-102
|
159
|
22
|
130
|
130
|
M10
|
3.5
|
|
TMV-132
|
209
|
22
|
160
|
160
|
M12
|
6.5
|
|
TMV-162
|
249
|
22
|
200
|
200
|
M12
|
9
|
HIGH TYPE JAW
|
型号
MODEL
|
A
|
B
|
C
|
D
|
E
|
|
TMV-75-J6H
|
75
|
35
|
30
|
12
|
15
|
|
TMV-100-J6H
|
99
|
56
|
40
|
28
|
20
|
|
TMV-130-J6H
|
130
|
75
|
45
|
37
|
22
|
|
TMV-160-J6H
|
160
|
85
|
45
|
42
|
22
|
LOW TYPE JAW
|
型号
MODEL
|
A
|
B
|
C
|
D
|
E
|
|
TMV-75-J6
|
75
|
25
|
15
|
5
|
5
|
|
TMV-100-J6
|
99
|
33
|
15
|
5
|
5
|
|
TMV-130-J6
|
130
|
40
|
25
|
5
|
5
|
|
TMV-160-J6
|
160
|
45
|
25
|
5
|
5
|

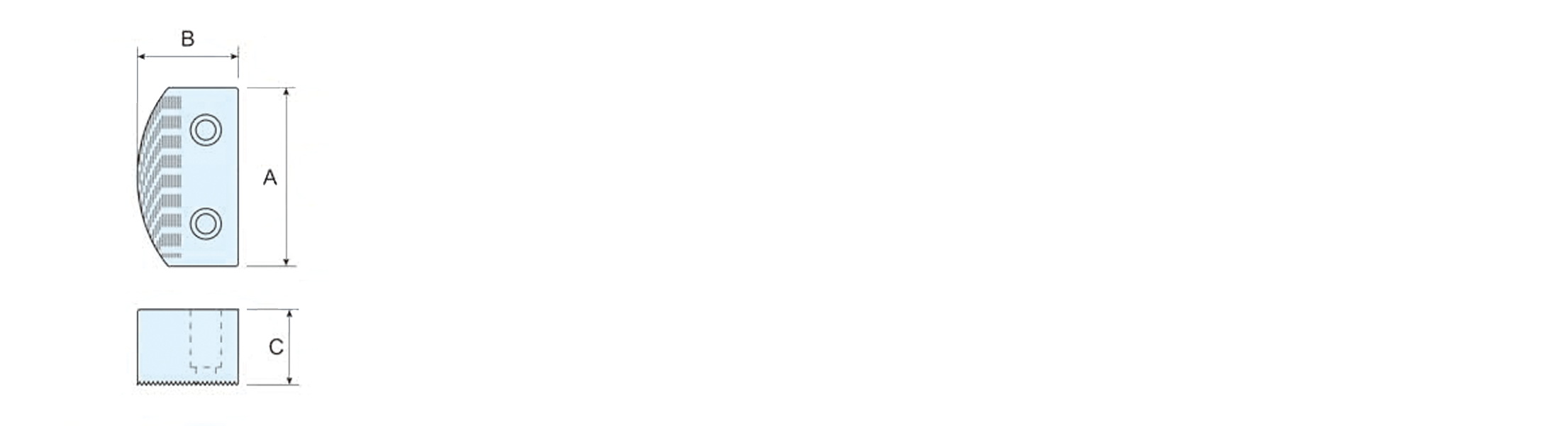

JAGGED JAW
|
型号
MODEL
|
A
|
B
|
C
|
D
|
E
|
|
TMV-75-J9
|
75
|
25
|
15
|
3
|
3
|
|
TMV-100-J9
|
99
|
33
|
15
|
3
|
3
|
|
TMV-130-J9
|
130
|
40
|
25
|
3
|
3
|
|
TMV-160-J9
|
160
|
45
|
25
|
3
|
3
|

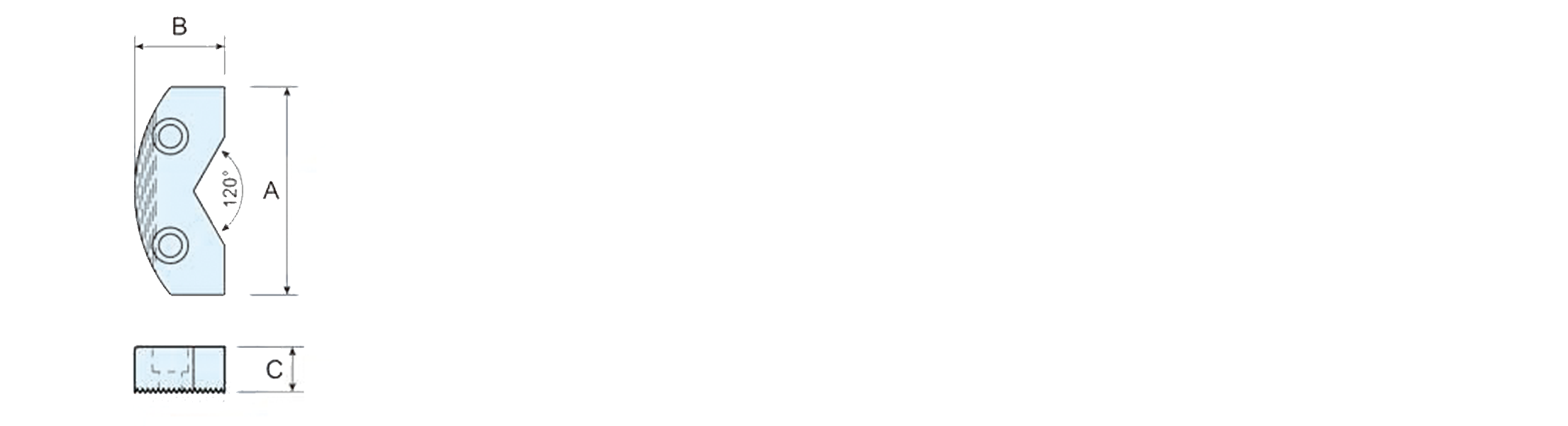

V JAW
|
型号
MODEL
|
A
|
B
|
C
|
|
TMV-75-J3
|
75
|
30
|
15
|
|
TMV-100-J3
|
99
|
38
|
15
|
|
TMV-130-J3
|
130
|
45
|
25
|
|
TMV-160-J3
|
160
|
50
|
25
|
SOFT JAW
|
型号
MODEL
|
A
|
B
|
C
|
|
TMV-75-J1
|
75
|
30
|
30
|
|
TMV-100-J1
|
99
|
56
|
40
|
|
TMV-130-J1
|
130
|
75
|
45
|
|
TMV-160-J1
|
160
|
85
|
45
|
TMV-75 MINIATURE JAW
|
型号
MODEL
|
A
|
B
|
C
|
D
|
E
|
|
TMV-75-J6-20
|
20
|
25
|
30
|
5
|
5
|
|
TMV-75-J6-30
|
30
|
25
|
30
|
5
|
5
|
|
TMV-75-J6-40
|
40
|
25
|
30
|
5
|
5
|
|
TMV-75-J6-50
|
50
|
25
|
30
|
5
|
5
|
