品牌：NTH
独创设计，更宽夹持
适合车削、铣削
Creative design,Wide clampingApplicable for machining and milling

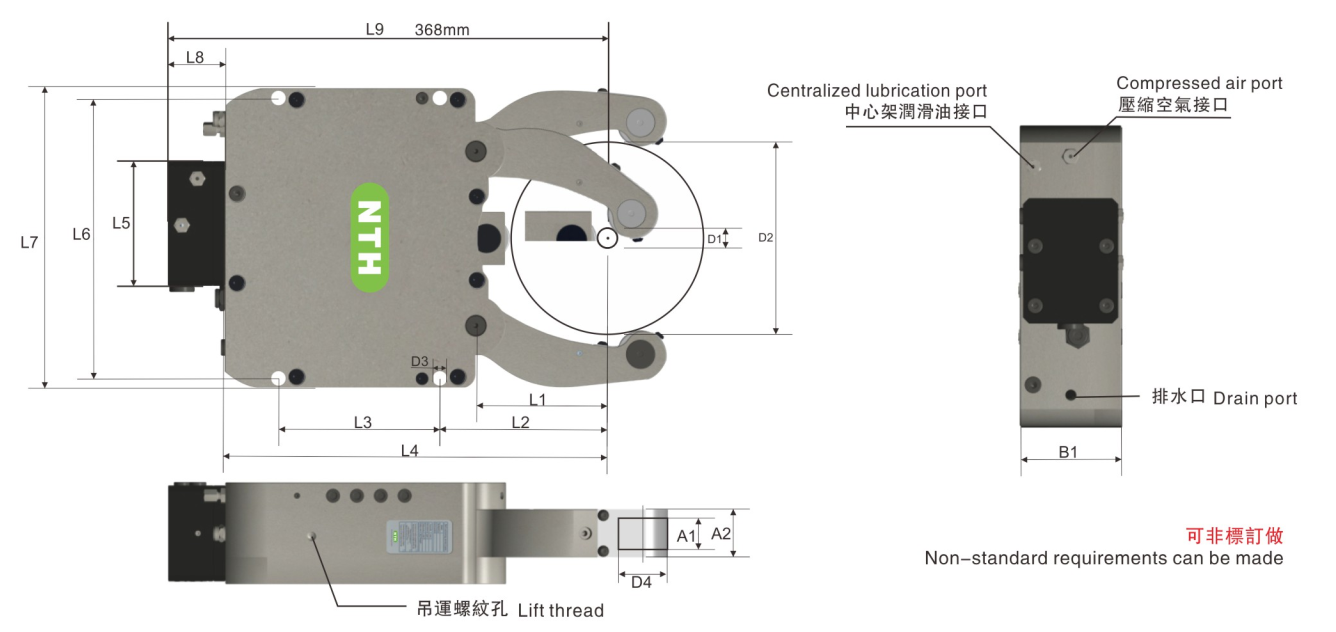

| NTH-OMSR 型号/Model 规格/Spec | OMSR-F1 |
| D1(mm) | 18 |
| D2(mm) | 162 |
| D3(mm) | 11 |
| D4(mm) | 40 |
| L1(mm) | 110 |
| L2(mm) | 140 |
| L3(mm) | 135 |
| L4(mm) | 320 |
| L5(mm) | 105 |
| L6(mm) | 235 |
| L7(mm) | 252 |
| L8(mm) | 48 |
| A1(mm) | 21 |
| A2(mm) | 40 |
| A3(mm) | / |
| B1(mm) | 85 |
| B2(mm) | / |
| B3(mm) | / |
| B4(mm) | / |
| B5(mm) | / |
| 工作压力最小/最大 Work pressure Min./Max. (bar) | 8/70 |
| 最大夹紧力/滚轴 Max clamping force of the roller (daN) | 1000 |
| 整个夹持范围的定位精度 Position accuracy within the clamping range (mm) | 0.04 |
| 重复定位精度 Repeatability accuracy (mm) | 0.007 |
| 滚轮最大线速度 Max line speed of the roller (m/min) | 725 |
| 重量 Weight(KG) | 50 |
非标准油缸按要求订货，保留技术更改！
Cylinders differing from standard available on request,Subject to technical changes.
保留技术更改的权利，恕不另行通知Subject to technology changes without prior information
